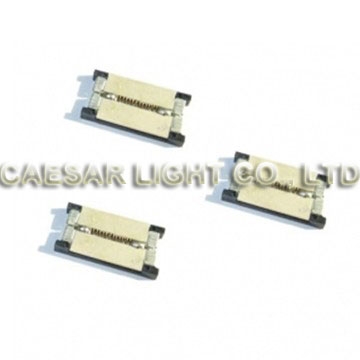

8mm 1210 / 3528 Single Color LED Strip Intermediate Connector

Specification:
Weight: 0.01g.
Length: 1.78cm
Width (inside): 0.8cm. (standard strip)
1.0cm (brighter strip)
Depth: 0.25cm
Working Voltage: 12V DC
IP Rating: non-waterproof


This intermediate connector is used to connect two lengths of 1210 / 3528 sinlge colour LED strip lighting together. The LED strip light must be 8mm wide to use this connector. Before this connector can be used, the rubber waterproof coating must be removed up to 5mm from the end of both strips. This connector can then grip onto the gold coloured terminals on both strips.
