Specifications
● Working temperature: -20-60 ℃
● Input Voltage: 5V～24V DC
● Output: 4 channels
● Static power consumption: <1W
● Output current: each channel 8A
● Output power: 5V:<160W, 12V:<432W, 24V:<864W
● External dimension: (L)165mm X (W)68mm X (H)40mm
● Packing size: L180ΧW95ΧH60（mm）
● Net weight: 320g
● Gross weight: 355g
Features

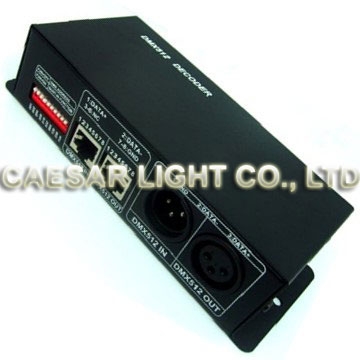

DMX common controller adopts the advanced micro control unit, itreceives standard DMX-512 digital control signal and transformed it into PWM signal for driving LED;You can connect DMX module with DMX digital console to achieve dimming or various changes in procedures.
