Features:

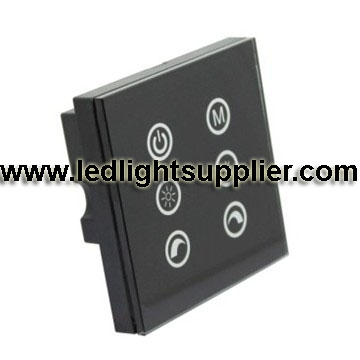

Adopting high precision capacitance touch control chip, Touch pad controller is a new research and development of high-end controller.With the glass panel design, its appearance are beautiful and vogue.
Specifications:
- Input Voltage: DC 12V-24V
- Output: 3 channels
- Output current: <4A( each channel )
- Output power: 12V<144W, 24V<288W
- Connection mode: common anode
- Static power consumption: <1W
- Working Temperature: -20-60℃
- Controller dimension: (L)86mm x (W)86mm x (H)36mm
- Packing Size: (L)90mm x (W)90mm x (H)45mm
- Net weight: 125g
- Gross weight: 150g
Remarks:
1. Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power；
2. Power supply voltage range is DC12-24V, more than voltage range maybe will burnout the controller.
