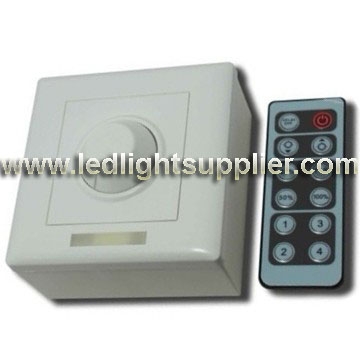

12-Key Infrared Remote Triac LED Dimmer Fixed on the Wall

Features:
Knob-operated and 12-key Infrared remote triac intelligent LED Dimmer can be adjusted light to the appropriate lighting brightness in accordance with your actual need.

Specification:
- Input Voltage: AC 90-240V
- Output: 1 channel
- Output current: 0.15A
- Static power consumption: <1W
- Power output: 150W
- Dimension: L89mmΧW86mmΧH62mm
- Remote panel Dimension: L86mmXW33mm
- Working temperature: -20-60℃
- Packing size: L160mmΧW95mmΧH51mm
- Net weight: 150g
- Gross weight:205g

AC IN: Power input interface, receiving voltage is AC90-240V.
LOAD: Load output interface, alternating current (ac) output.
PWM: PWM signal output interface, output 0-10V PWM signal, and
specialized in controlling the dimmer with PWM control signal, it is not allowed to connect LOAD.
